Tube Sealers, Pneumatic Tube Sealers
Product Specs & Information
Style:Pneumatic Tube Sealers
Size(s):
Neck Finish: (Air Cooling Upgrade, Additional Tubes Racks, Single Element 1/4" Spare Parts Kit, Dual Element 1/4" Spare Parts Kit, Dual Element Upgrade, Part for 5/8" Wide Element w/ 220 volts, Bar Drilled for Water Cooling, 110V Pneumatic Tube Sealer)

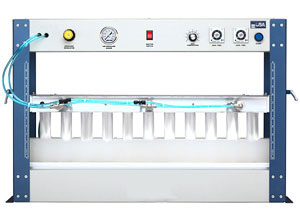

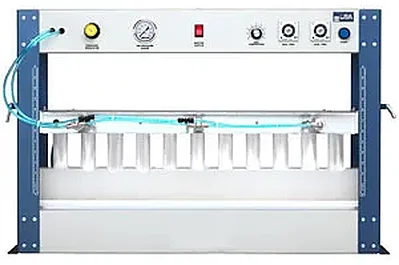

MTSS760 Tube Sealer Features:
- 30" wide Thermal Impulse Seal
- 1/4" heating element
- Pneumatically operated (typically 60-80 lb)
- Pressure regulator and gauge
- Heat & cool timer (0.001 sec – 999.9 hrs)
- Feed-through design allows removal of sealed tubes from either end
- Hgt adjustable seal jaw for all size tubes
- Height gauges
- Polypropylene tube racks
- Master on/off switch with illuminated dial
- Heavy duty steel construction
- Clean room compatible
- Exhaust port
- Unit Dimensions: 610 mm (H) x 915 mm (L) x 458 mm (W)
- 110 volts/single phase/60 Hz, 10 amps
Included with each purchase:
- Sealing tips
- Spare parts kit
- Detailed operating instructions
- 1 year manufacturer's warranty, parts and labor (not including consumables)
Tube Dia | Tubes/ Rack * | Seal/ Min ** | Seal/Hr | Seal/ Day |
13 mm | 25 | 50 | 3000 | 24000 |
16 mm | 23 | 46 | 2760 | 22080 |
19 mm | 19 | 38 | 2280 | 18240 |
22 mm | 17 | 34 | 2040 | 16320 |
25 mm | 17 | 34 | 2040 | 16320 |
30 mm | 15 | 30 | 1800 | 14400 |
35 mm | 13 | 26 | 1560 | 12480 |
39 mm | 11 | 22 | 1320 | 10560 |
49 mm | 8 | 16 | 960 | 7680 |
* Based on tube diameter
** Based on estimated cycle time of 30 sec. Actual times may vary slightly; do not reflect air/water cooling options.
Product Description:
Designed for higher production runs than the STS-7 and STS-7D sealers, the MTSS760 Pneumatically-operated Plastic Tube Sealer is capable of sealing up to 3000 tubes per hour. With many available control options, such as seal heating and cooling temperatures, air pressure regulation, and jaw pressure, customizing for different tube sizes and applications is easy and simple.
* 1 Heat Element, 1 Sponge, 1 Cold Side Teflon, 1 Hot Side Teflon, 1 10 Mil Teflon
** 2 Heat Elements, 1 Sponge, 4 Hot Side Teflon, 2 10 Mil Teflon
Note: Lead time is 4 weeks
