Packaging Equipment, Single Digital Tube Sealers w/ Temperature Control


Packaging Equipment, Single Digital Tube Sealers w/ Temperature Control

Packaging Equipment, Single Digital Tube Sealers w/ Temperature Control

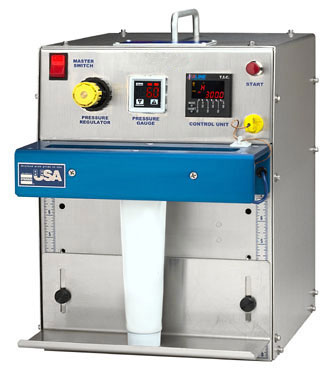

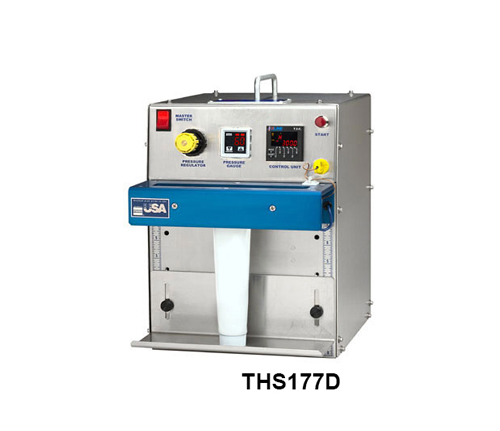

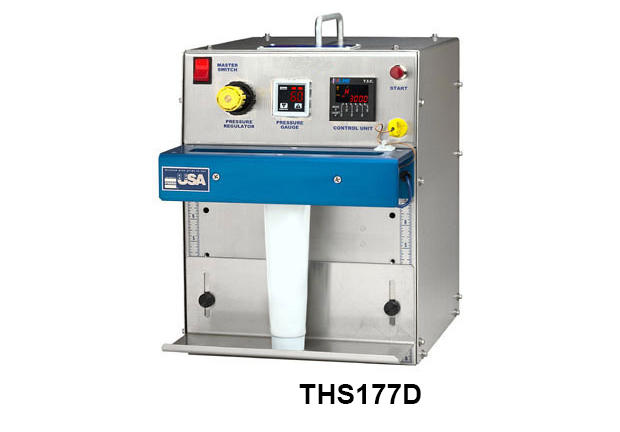

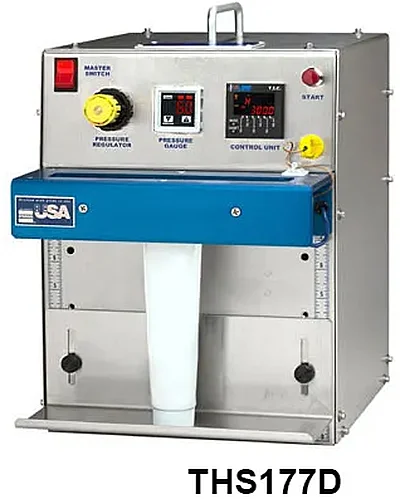

The THS177D self-contained tube sealing device is ideal for laboratory, production line, research and development use, and more. This digital tube sealer is economical, safe to operate and easy to use, and could also be used to seal small bags and pouches for smaller production runs, in addition to tubes. This tube sealer can be used on all LDPE, MDPE or HDPE tubes within a 7" maximum seal length. A wide variety of additional parts are also available below, including a 220V upgrade, dual element, and digital water chiller.

Note: Lead time is 4 weeks


Stock #+ Size Cs Case Pk PrcPrice/Cs Qty Addons
THS177D
Out of Stock
(In Stock Approx. TBA)

Order Now to Reserve Inventory
Notify Me When Available
110V Digital Single Tube Sealer  1/cs $6,705.37$6,705.37 Show Addons
Out of Stock
(Approx. Date in Stock: TBA)


Order Now to Reserve Inventory
Order Now to Reserve Inventory
Notify Me When Available
9000-03B
Out of Stock
(In Stock Approx. TBA)

Order Now to Reserve Inventory
Notify Me When Available
220 Volt Upgrade  1/cs $581.13$581.13 Show Addons
Out of Stock
(Approx. Date in Stock: TBA)


Order Now to Reserve Inventory
Order Now to Reserve Inventory
Notify Me When Available
9000-04B
Out of Stock
(In Stock Approx. TBA)

Order Now to Reserve Inventory
Notify Me When Available
Part for 5/8 in Wide Element w/ 220V  1/cs $747.16$747.16 Show Addons
Out of Stock
(Approx. Date in Stock: TBA)


Order Now to Reserve Inventory
Order Now to Reserve Inventory
Notify Me When Available
9000-01B
Out of Stock
(In Stock Approx. TBA)

Order Now to Reserve Inventory
Notify Me When Available
Dual Element Upgrade  1/cs $498.11$498.11 Show Addons
Out of Stock
(Approx. Date in Stock: TBA)


Order Now to Reserve Inventory
Order Now to Reserve Inventory
Notify Me When Available
9000-02B
Out of Stock
(In Stock Approx. TBA)

Order Now to Reserve Inventory
Notify Me When Available
Dual Element Kill Switch  1/cs $166.04$166.04 Show Addons
Out of Stock
(Approx. Date in Stock: TBA)


Order Now to Reserve Inventory
Order Now to Reserve Inventory
Notify Me When Available
9000-06B
Out of Stock
(In Stock Approx. TBA)

Order Now to Reserve Inventory
Notify Me When Available
Digital Water Chiller  1/cs $5,562.21$5,562.21 Show Addons
Out of Stock
(Approx. Date in Stock: TBA)


Order Now to Reserve Inventory
Order Now to Reserve Inventory
Notify Me When Available
9000-05B
Out of Stock
(In Stock Approx. TBA)

Order Now to Reserve Inventory
Notify Me When Available
Bar Drilled for Water Cooling  1/cs $498.11$498.11 Show Addons
Out of Stock
(Approx. Date in Stock: TBA)


Order Now to Reserve Inventory
Order Now to Reserve Inventory
Notify Me When Available
9000-07B
Out of Stock
(In Stock Approx. TBA)

Order Now to Reserve Inventory
Notify Me When Available
1/4" Spare Parts Kit for Single Element  1/cs $175.58$175.58 Show Addons
Out of Stock
(Approx. Date in Stock: TBA)


Order Now to Reserve Inventory
Order Now to Reserve Inventory
Notify Me When Available
9000-08B
Out of Stock
(In Stock Approx. TBA)

Order Now to Reserve Inventory
Notify Me When Available
1/4" Spare Parts Kit for Dual Element  1/cs $295.21$295.21 Show Addons
Out of Stock
(Approx. Date in Stock: TBA)


Order Now to Reserve Inventory
Order Now to Reserve Inventory
Notify Me When Available
9000-09B
Out of Stock
(In Stock Approx. TBA)

Order Now to Reserve Inventory
Notify Me When Available
NIST Certificate of Calibration  1/cs $655.84$655.84 Show Addons
Out of Stock
(Approx. Date in Stock: TBA)


Order Now to Reserve Inventory
Order Now to Reserve Inventory
Notify Me When Available


Product Info


9000-07B includes: 1 Heat Element, 1 Sponge, 1 Cold Side Teflon, 1 Hot Side Teflon, 1 10 Mil Teflon
9000-08B includes: 2 Heat Elements, 1 Sponge, 4 Hot Side Teflon, 2 10 Mil Teflon
9000-09B is for pressure, digital timer & temperature (7-10 business day lead time)

THS177D Temperature Impulse Controller: (T.I.C.):
- User programmable seal temperature, cool temperature & heat timer
- Cycle counter
- Choice of degrees F or C
- Accuracy +/- 3° F regardless of set point
- Type K thermocouple
- Max temperature 450° F (Teflon Tape burns at 500 F)
- 24VDC circuitry
- Screen lock
- Digital display
- Visual display of process parameters
- Phase control
- Temperature reading every 18 milliseconds
- Run away heat protection
- Fast floating point PID
- FDA/NIST validate

THS177D Features
- One year warranty
- 7" wide Thermal Impulse seal
- Pneumatic system requires a compressed air source
- Pressure gauge and regulator
- Convenient Handles
- Master on/off illuminated switch
- Exhaust port
- Validation ports for air pressure, seal time & seal temperature
- Adjustable stainless steel tray w/ height gauges
- Clean room compatible
- Comes with single element for sealing plastic tubes; can be upgraded to dual element for more difficult applications
- Heavy duty stainless steel body/construction
- 110 volts/ single phase/ 60 Hz
- Unit Dimensions: 356 mm (H) x 254 mm (L) x 254 mm (W)

The THS177D self-contained tube sealing device is ideal for laboratory, production line, research and development use, and more. This digital tube sealer is economical, safe to operate and easy to use, and could also be used to seal small bags and pouches for smaller production runs, in addition to tubes. This tube sealer can be used on all LDPE, MDPE or HDPE tubes within a 7" maximum seal length. A wide variety of additional parts are also available below, including a 220V upgrade, dual element, and digital water chiller.

Note: Lead time is 4 weeks
